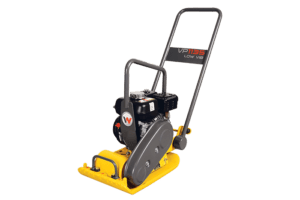

VP 1135A Vibratory Plate

Call Us · Enquire Now

The VP-Value Plate provides a simple, proven design and high quality construction for confined area soil compaction jobs. A Water tank model provides for excellent results on hot and cold asphalt. The guide handle with vibration damping means longer working hours and less fatigue for the operator.

Wacker Neuson

Technical specifications

Operating data

Operating weight 137 lb
Centrifugal force 2,470 lbf
Base plate size (w x l) 14 x 20.5 in
Operating width 14 in
Height Lowest working 25 in
Operating height 35 in
Frequency 97 Hz
Advance travel (depending on soil) 85 ft/min
Advance travel (depending on asphalt) 95 ft/min
Surface capacity (depending on soil) 5,900 ft²/h
Surface capacity (depending on asphalt) 6,569 ft²/h

Engine / Motor

Engine / Motor type air-cooled single cylinder 4 cycle gasoline engine
Engine / Motor manufacturer Honda
Displacement 7.2 in³
Engine performance 3 kW
at rpm 3,600 rpm
Fuel consumption 0.2 US gal/h
Tank capacity 2.6 US qt
Power transmission from drive engine via centrifugal clutch and V-belt directly to exciter which transmits centrifugal force onto baseplate
