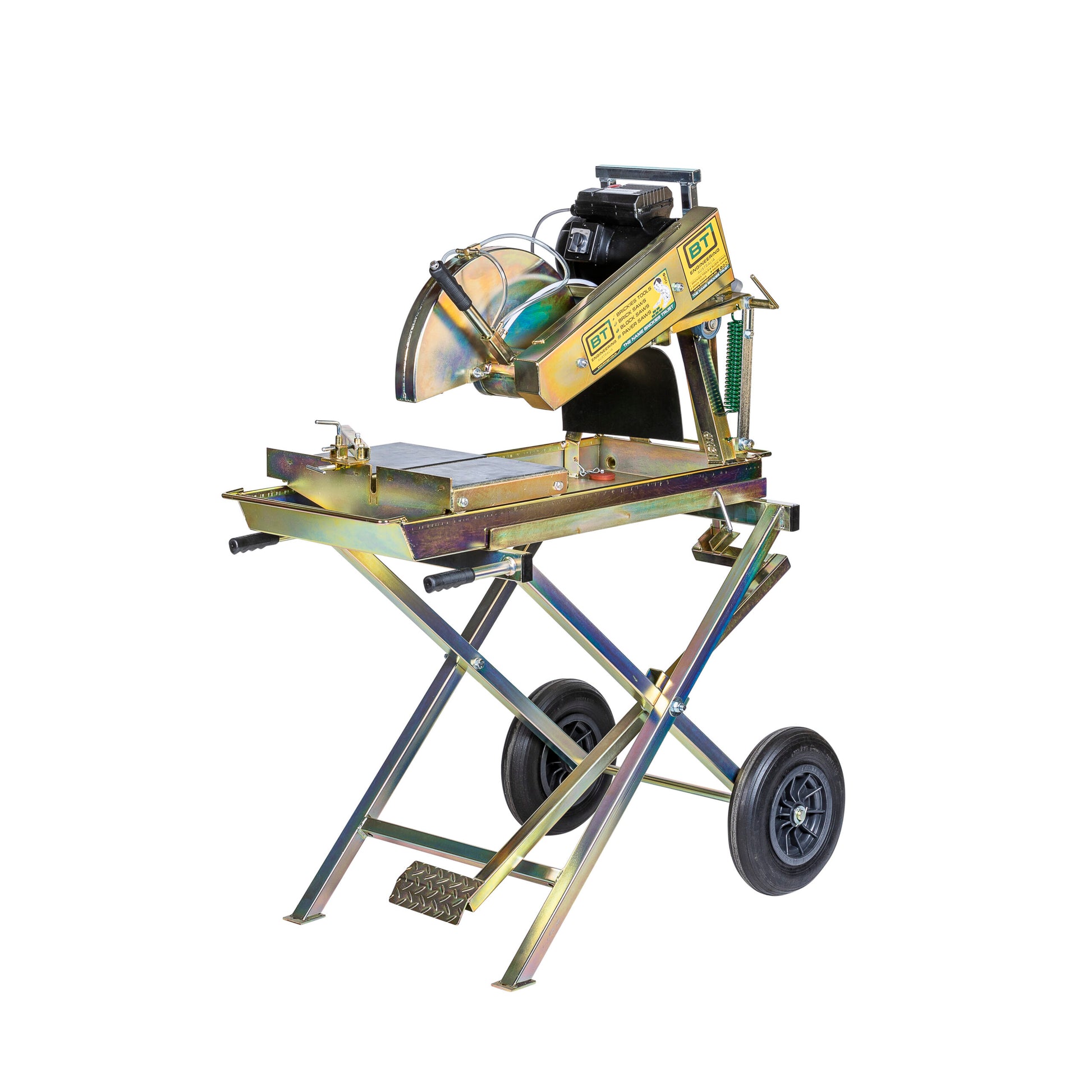

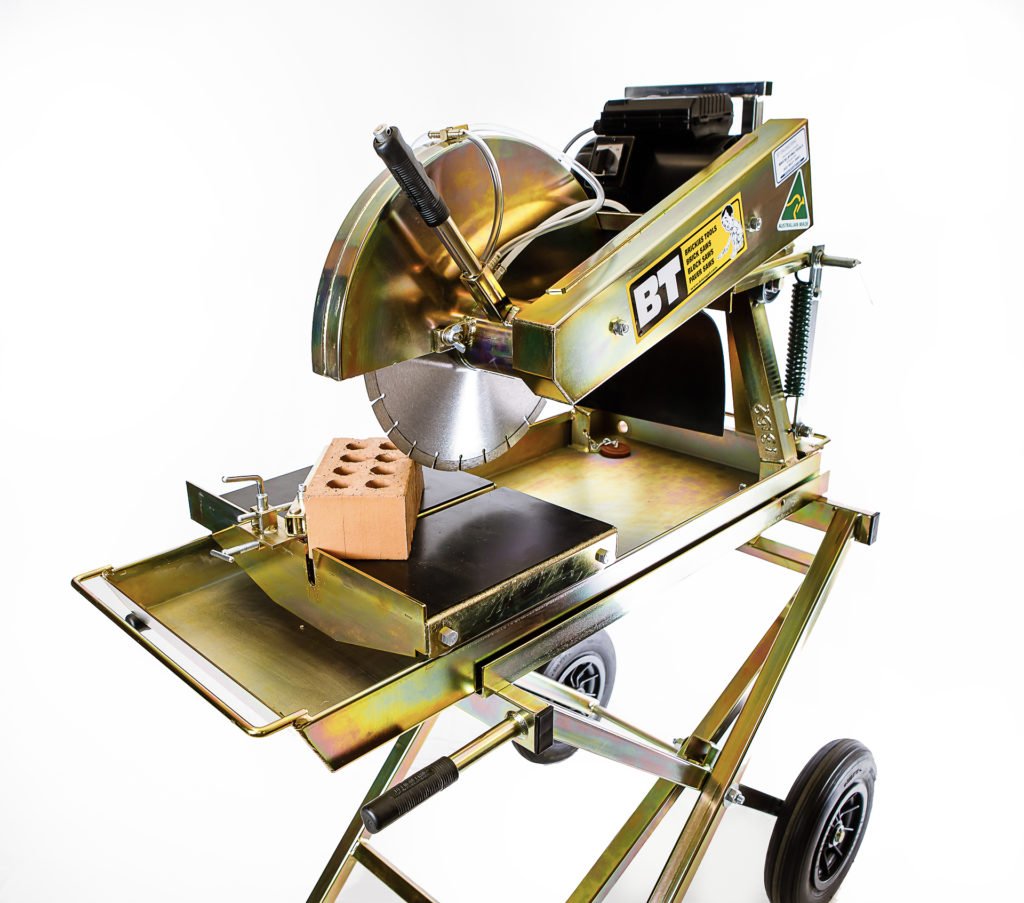

14" (355mm) BT Electric Brick Saw

The iconic BT Brick Saw has been upgraded.

This newer model now fits either a 14" or 16" Diamond Blade.
With a 50-year history of supporting bricklayers, our products are designed to stand the test of time.

BT Engineering is your Quality Tools Partner

Now for the finer details:

• Engineered optimal dust suppression, with our custom-designed 3-way independent water button. On/Off, hands-free or constant flow water modes.
• Fitted rubber splash guard reduces water spray and slurry build up
• Custom designed & durable carriage tray with removable mitre guide for precise cuts of any length or shape.
• Lightweight detachable base and stand with puncture proof tyres, ensures easy manoeuvrability onsite and convenient transport.
• Updated blade guard to fit both 14Ó & 16Ó blades. Hinged mechanism for continued user protection, effective water disbursement and easy blade changeover.
• 3 cutting options using a fixed position, pull down handle or foot pedal.
• Zinc electroplating ensures the BT Brick Saw repels dust and corrosion for many years of operation.
• Added mounts for belt driven water circulation pumps.
• Plus, a wide range of parts to keep your saw running.

Motor Specifications:

• 1800 watt electric Fasco motor
• Voltage : 240 (50hz)
• Current draw ( Amps)
• Max ( Start Up) 55.57
• Minimum 7.97
• Normal 8.86
• RPMs 2230

Blade & Cutting Specifications

• Blade size (diameter)
  • Minimum 14" (355mm)
  • Maximum 16_ (406mm)
  • Blade bore diameter 25.4mm / 1"
  • Depth of cut: 125mm (14_) to 145mm (16_)
  • Length of cut: 500mm
  • Clearance up to 200mm

Carriage Dimensions

• Length: 310mm
• Width: 440mm

  Bricksaw Dimensions

Assembled

Length: 1180 mm
Width: 680 mm
Height: 1560 mm
Weight: 90kg
Packed for transportation

Length: 1200 mm
Width: 680 mm
Height: 800 mm
